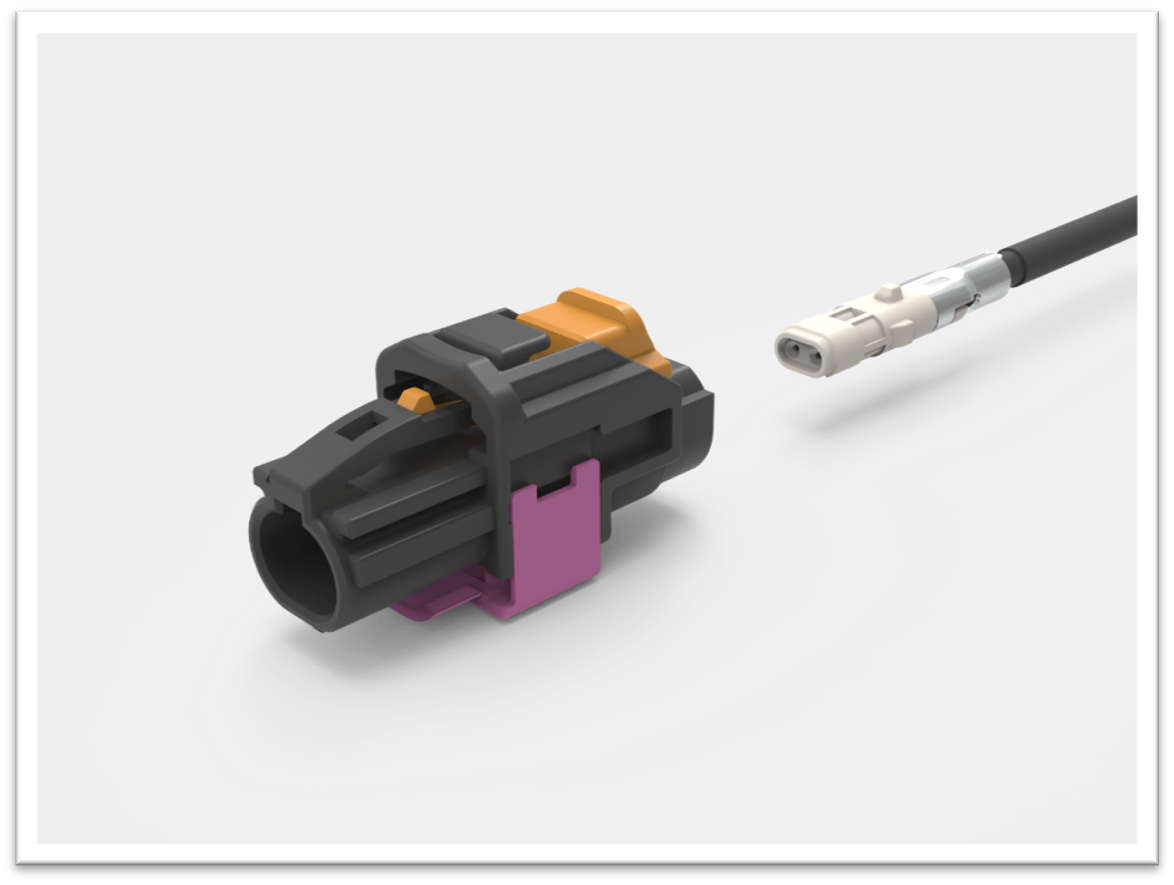

1DP – Ethernet Connectors range – 1W Female
The 1DP Female Ethernet connector is engineered to provide secure, reliable, and durable Ethernet connectivity in automotive and mobility applications. Its female interface ensures precise alignment and protected contacts, reducing the risk of damage during handling and mating operations. Designed for high-speed Single Pair Ethernet (1DP) communication, the connector maintains excellent signal integrity while supporting the transition toward Ethernet-based vehicle architectures. Its robust construction and optimized contact retention make it well suited for environments subject to vibration, thermal cycling, and long-term operational stress, ensuring consistent performance throughout the vehicle lifecycle.
Benefits
- Supports high-speed Ethernet data transmission, ensuring fast and reliable in-vehicle communication
- Compact and robust design suitable for demanding automotive environments
- Low insertion loss and excellent signal integrity, minimizing data errors
- Easy integration with existing wiring harnesses, reducing installation complexity
- Enhanced durability and vibration resistance, improving overall system reliability.
Interface : recessed contacts for enhanced protection, secure and precise mating with corresponding 1DP male connectors
Data transmission : Supports high-speed Ethernet through Single Pair Ethernet (1DP)
Signal quality : Optimized contact geometry for excellent signal integrity and low insertion loss
Design : Compact form factor suitable for dense wiring harness integration, suitable for integration in constrained environments
Environmental : High resistance to vibration and mechanical stress
Integration : Compatible with standardized automotive Ethernet architectures
Options:
- …

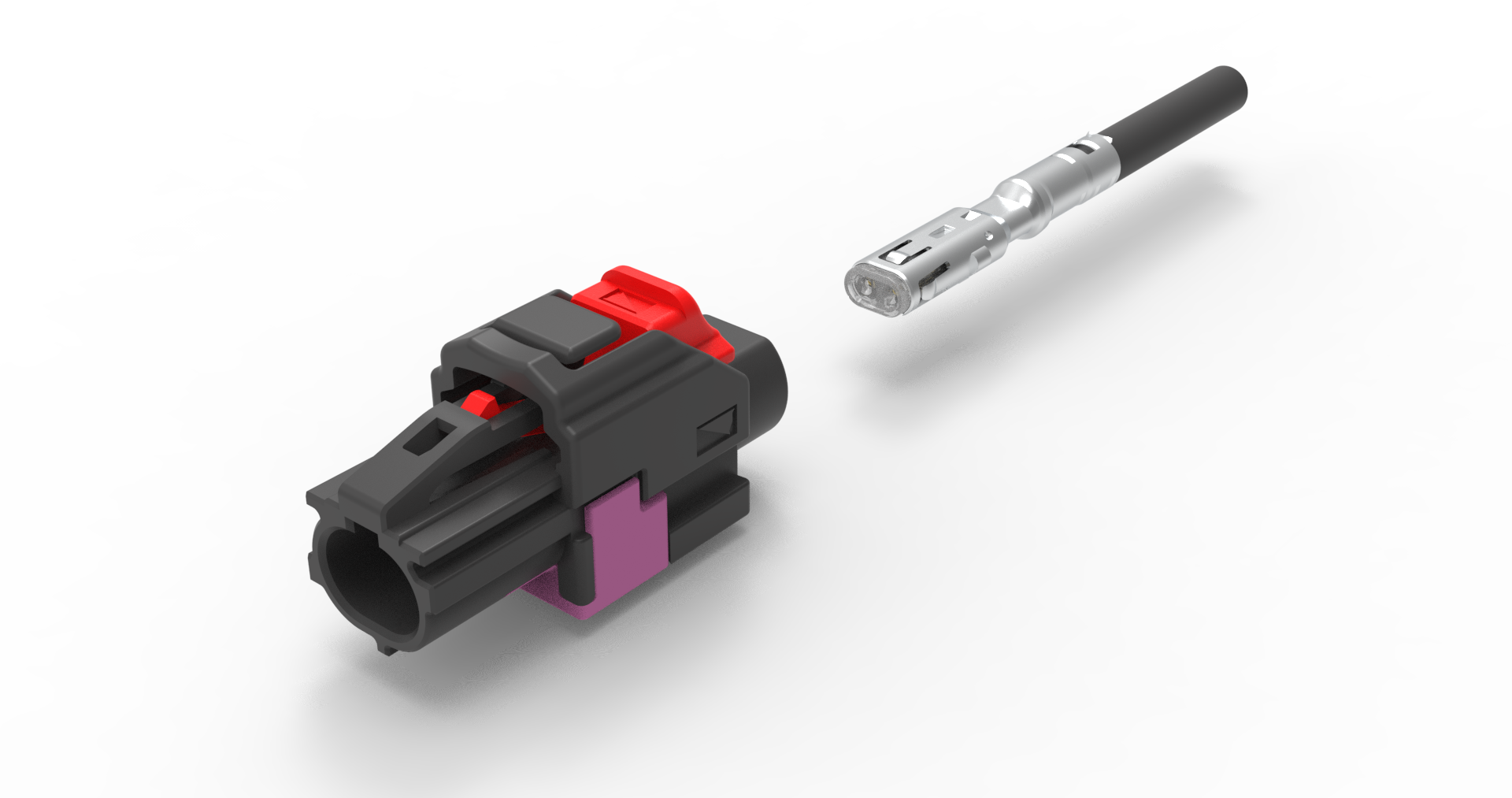

1DP 1P WP Ethernet Female
| Titre | Description | Télécharger |
|---|---|---|
| raydiall_brochure_1DP_2025 | Aperçu |
